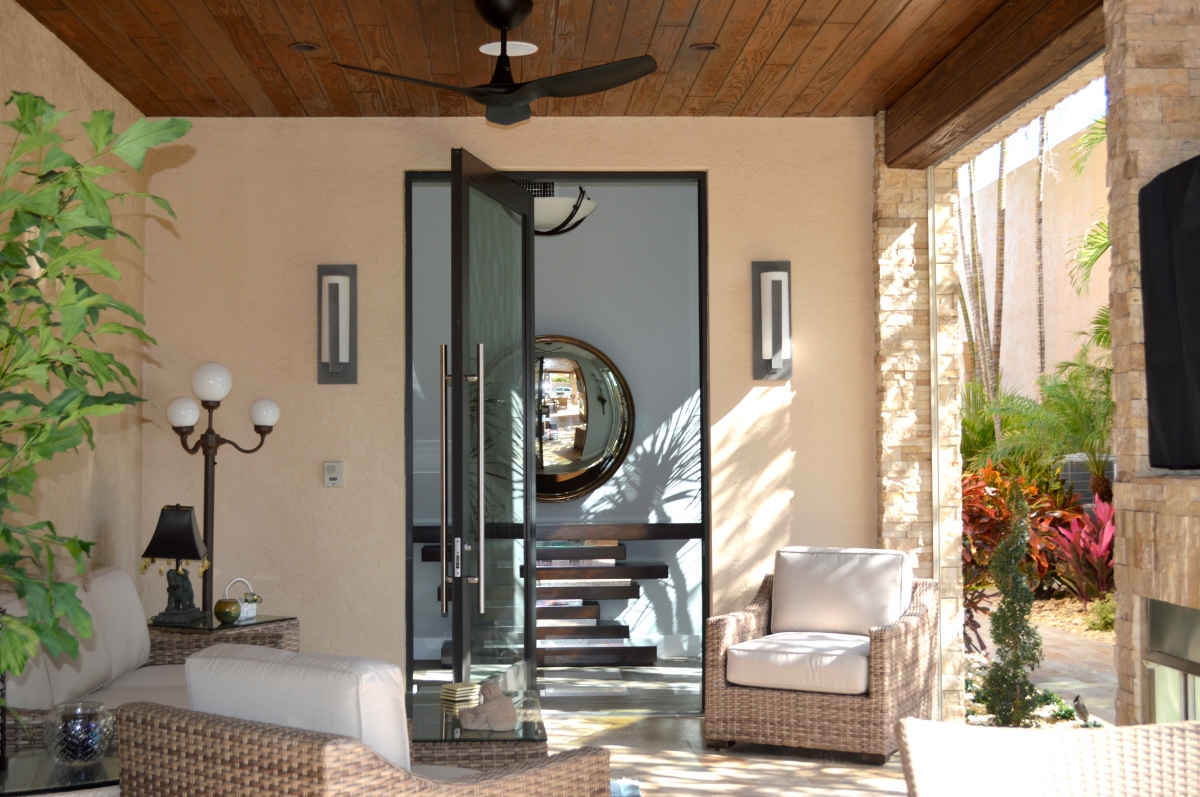

Pivot Doors
- Maximum size of 72″ x 108″ and 60″ x 120″ on a single panel.
- White & Bronze Frames are the standard choices but various Woodgrain Colors, Clear Anodized & Custom Colors are available at an additional cost.
- Standard Sentinel 3-Point Lock system which includes decorative backplates & Lever handles. Custom Commercial lock mechanism witch Pull Handles available.
- Standard ADA Sill.
- 7/16″ Laminated Impact Glass for full panels and 1″ Insulated Impact Glass for True Divided Lites.
- Custom Frame is available for 1/4″ cladding inside and out (with no approval).

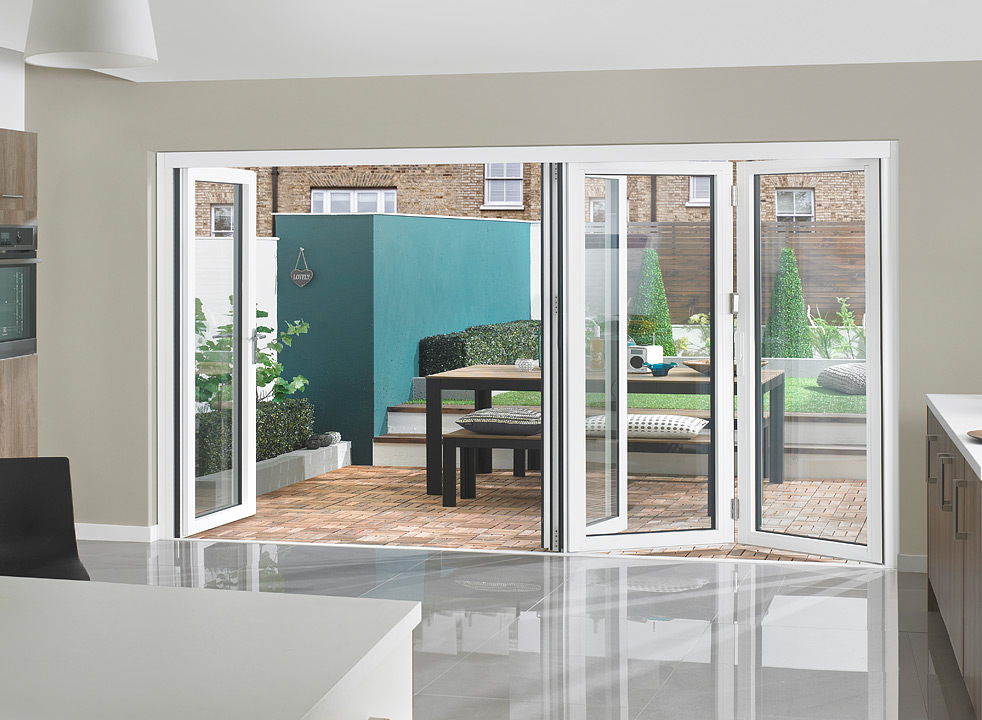

Bi-Fold Doors
- White & Bronze Frames are the standard choices but various Woodgrain Colors, Clear Anodized & Custom Colors are available at an additional cost.
- Standard Residential & ADA Sill.
- 7/16″ Laminated Impact Glass for full panels and 1″ Insulated Impact Glass for True Divided Lites.

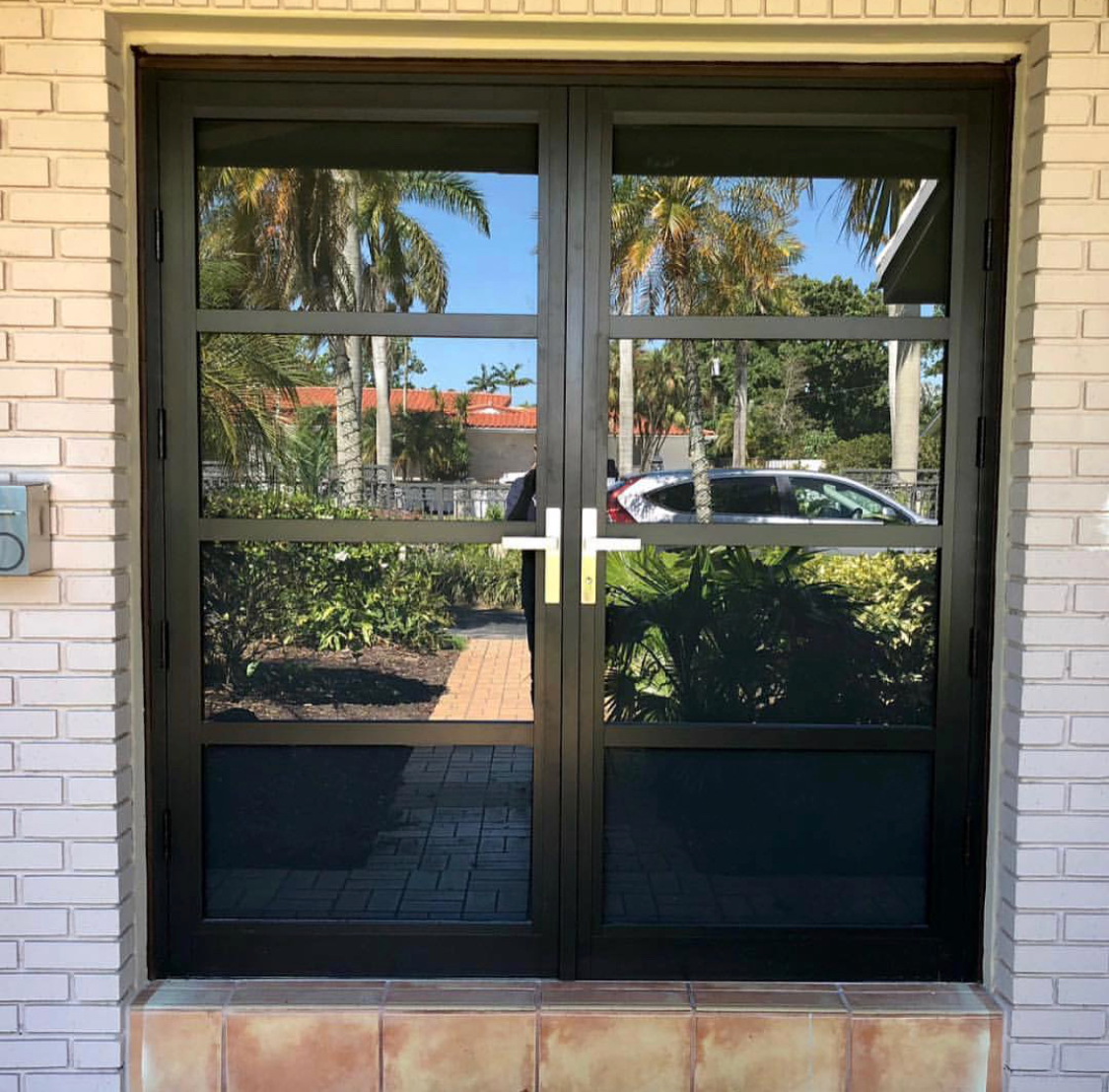

Contemporary Entry Doors
- Maximum size for Double Doors 101″ x 144″ and Single Doors 52″ x 144″.
- Standard Sentinel 3 Point Lock system which includes decorative backplates and Lever handles. Commercial Lock Mechanism with Pull Handles available.
- Custom Powder Coated Finishes and various Woodgrain Colors available.
- Standard Sill, Lo-Rise Sill for thin flooring, ADA Sill for Commercial Applications and no sill for courtyard Doors available.
- Laminated 7/16″ Impact Glass, 9/16″ Laminated Impact & 1″ Impact Glass

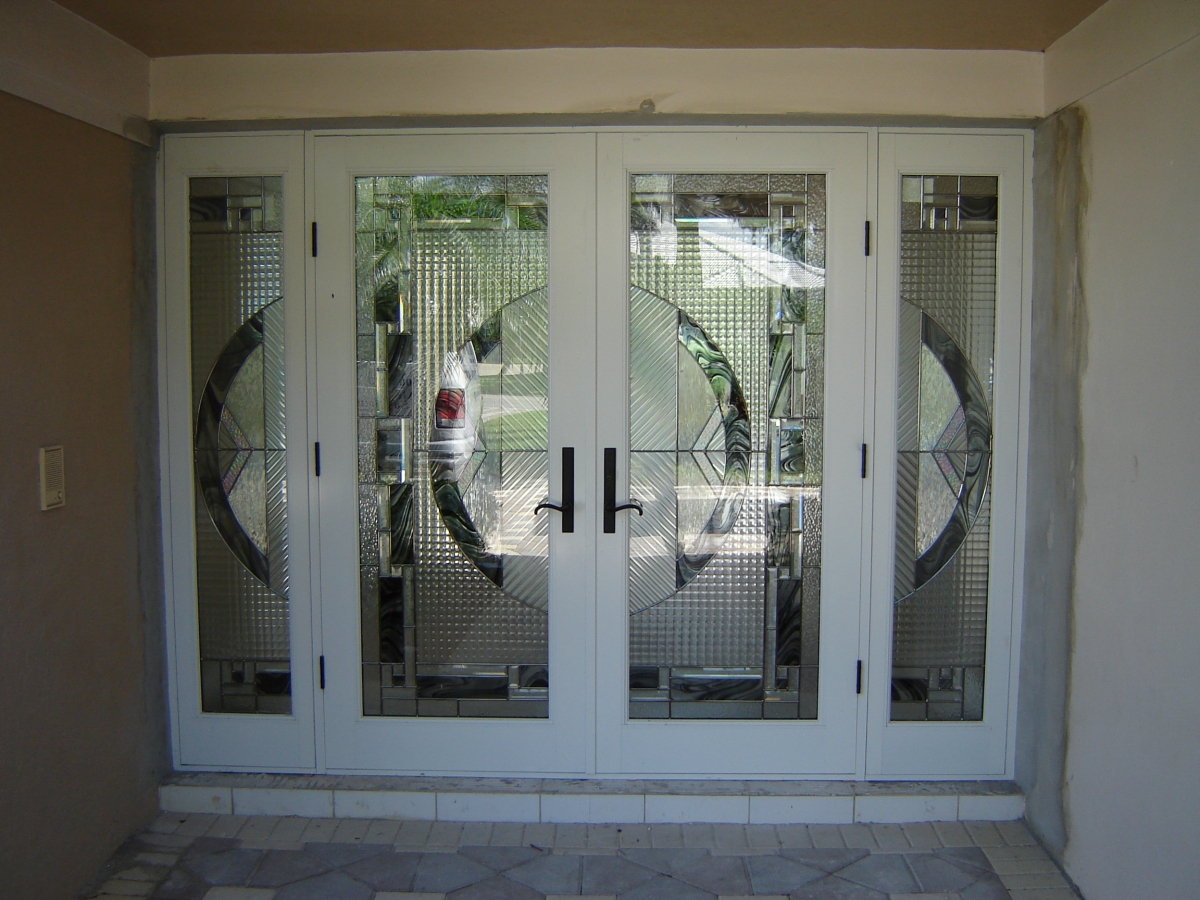

Decorative Entry Doors
- Maximum size for Double Doors 101″ x 144″ and Single Doors 52″ x 144″.
- Standard Sentinel 3 Point Lock system which includes decorative backplates and Lever handles. Commercial Lock Mechanism with Pull Handles available.
- Custom Powder Coated Finishes and various Woodgrain Colors available.
- Standard Sill, Lo-Rise Sill for thin flooring, ADA Sill for Commercial Applications and no sill for courtyard Doors available.
- Laminated 7/16″ Impact Glass, 9/16″ Laminated Impact & 1″ Impact Glass.

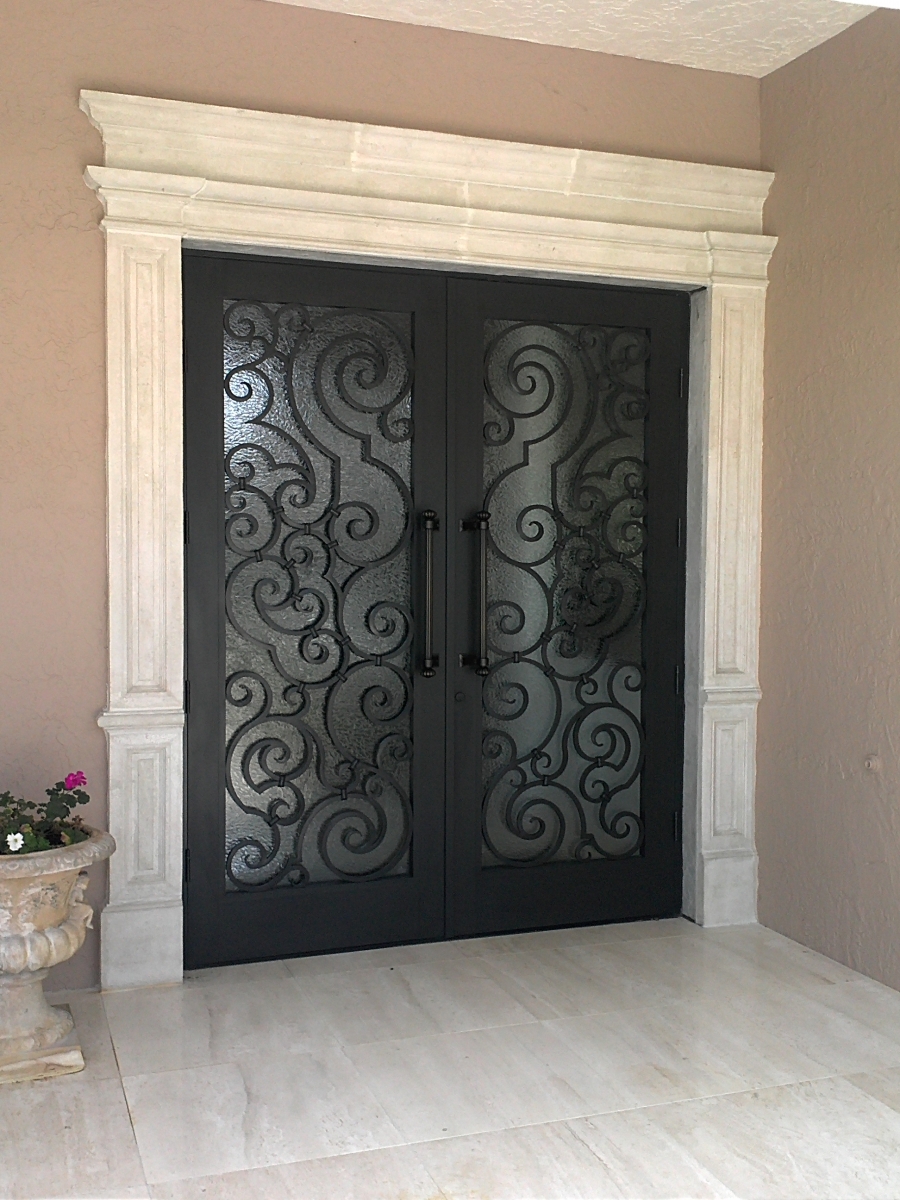

Ornamental Entry Doors
- Maximum size for Double Doors 76″ x 132″ and Single Doors 39 3/8″ x 132″ / 48″ x 120″.
- Standard Sentinel 3 Point Lock system which includes decorative backplates and Lever handles. Commercial Lock Mechanism with Pull Handles available.
- Custom Powder Coated Finishes and various Woodgrain Colors available.
- Standard Sill, Lo-Rise Sill for thin flooring, ADA Sill for Commercial Applications and no sill for courtyard Doors available.
- Laminated 7/16″ Impact Glass & 1″ Insulated Impact.
- Hinged Ornamental Wrought Iron for easy cleaning available.
French Doors
- Maximum size for Double Doors 101″ x 144″ and Single Doors 52″ x 144″.
- Standard Sentinel 3 Point Lock system which includes decorative backplates and Lever handles. Commercial Lock Mechanism with Pull Handles available.
- Custom Powder Coated Finishes and various Woodgrain Colors available.
- Standard Sill, Lo-Rise Sill for thin flooring, ADA Sill for Commercial Applications and no sill for courtyard Doors available.
Sliding Glass Doors
- Maximum size tested 500″ x 144” (Unlimited Panels) Max panel sizes 84″ x 108″, 72″ x 120″ and 60″ x 144″.
- Design Pressures +90/-110
- 9/16″ Dupont sentry glass.
- Tracks with built in pans and drainage holes to assure ample drainage. (Hi-rise tracks available for maximum performance during excessive water and high wind conditions)
- Tandem roller assembly made of 6061-T6 structural grade aluminum alloy with stainless steel ball bearings and adjustment screws. The 2 wheel system provides ease of use.
- Energy efficient Low-E glass option available for areas with over exposed sunlight.
- Standard finishes white/bronze high performance powder coat to meet AAMA 2604 is warranted to resist peeling, cracking and fading. (Custom wood grain and Kynar finishes also available)

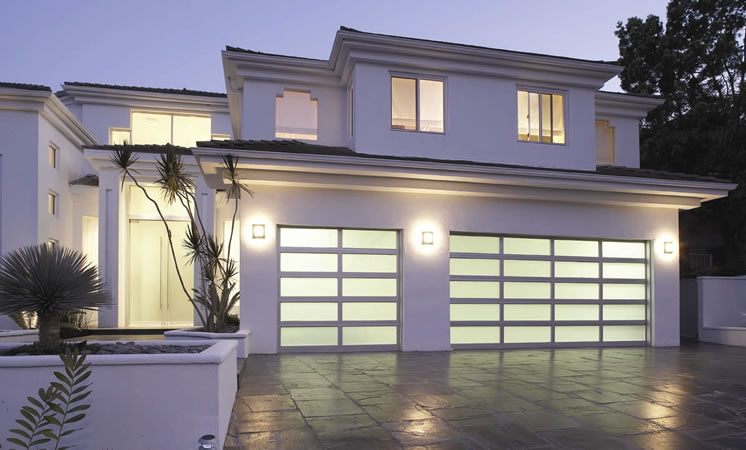

Garage Doors
- Glass types : 5/16″ Laminated PVB , 7/16″ Laminated Impact and 11/16″ Insulated Impact.
- Single Panels 12′ x 14′ impact resistant.
- Double Panels 18′-4″ x 14′ impact resistant.
- Solid aluminum panels and privacy glass available.
