Casements
- Maximum Size for our casement windows is 37 x 80 (+80 -80) and Project out 37 x 80 and 80 x 37 (+80 – 80).
- Heavy duty extruded aluminum is painted with a 2604 (10 Years 50% Kynard Paint) for long lasting and low maintenance.
- Wood grain Finish is also available.
- Frame depth is 3″ for windows Nominal wall thickness ranges from .090 to .125 for all windows.
- Installation holes are pre punched for easy installation.
Projected Casements
- Maximum Size for our casement windows is 37 x 80 (+80 -80) and Project out 37 x 80 and 80 x 37 (+80 – 80).
- Heavy duty extruded aluminum is painted with a 2604 (10 Years 50% Kynard Paint) for long lasting and low maintenance.
- Wood grain Finish is also available.
- Frame depth is 3″ for windows Nominal wall thickness ranges from .090 to .125 for all windows.
- Installation holes are pre punched for easy installation.

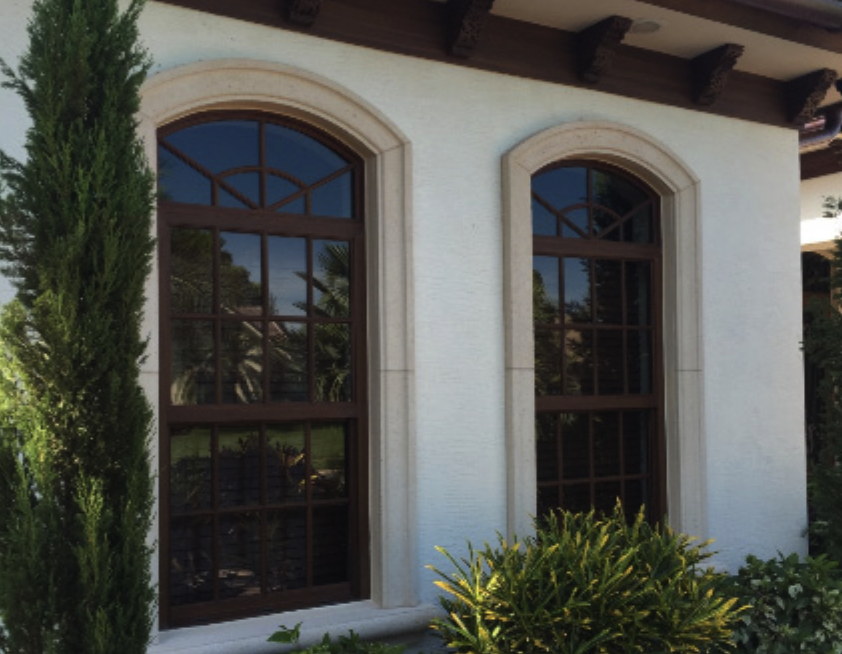

Single Hung
FRAMES
- Maximum size tested 53 1/8 X 96 with (+106.7 -130)
- Heavy-duty extruded aluminum is painted with a electrostatic paint for a low maintenance
- Frame depth is 3″ for windows
- Nominal wall thickness is .078 for all windows.

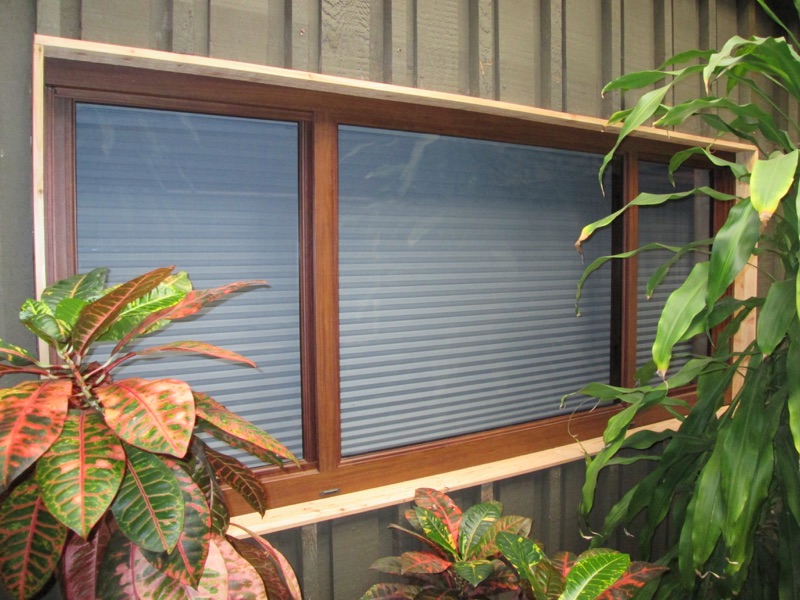

Rolling
FRAMES
- Maximum size tested 144 X 76 & 173″ x 60″ up to +/ 80.0
- Heavy-duty extruded aluminum is painted with a electrostatic paint for a low maintenance
- Frame depth is 3″ for windows
- Nominal wall thickness is .078 for all windows.
- Brass tandem rollers for dependable long-life operation
- Configurations of XO, OX and XOX are available.
GLAZING
- Die cast sash lock for strength and security
- Egress connector bar provides single step operation
- Multiple glazing options are available to meet various design requirements
Fixed Windows
- Maxiumim Size 72″ X 144″ (+90 – 130) See NOA for more information
- Heavy-duty extruded aluminum with standard paint powder coated 2604
- Frame depth is available in 3″ and 4-5/8″
- Nominal wall thickness is .078-.125 for all windows.
- Installation holes are pre-punched for easy installation
- Flange and Box Frames are also available.

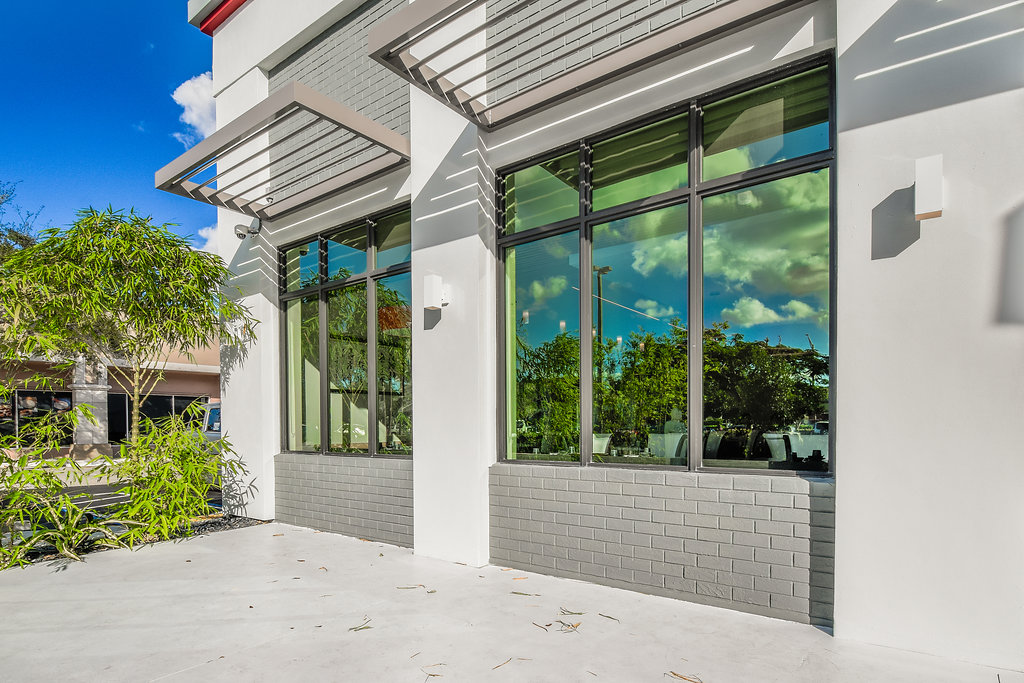

Commercial
- Tested up to 72sqft.
- Unlimited panels with an H-Mull for an easy installation.
- WindowWall system up to 132″.
- 7/16″ ,9/16″ , 1″ ,1-1/4″ and decorative leaded glass types approved for Zone 1 and Zone 2.
